COMMERCIAL PRODUCT

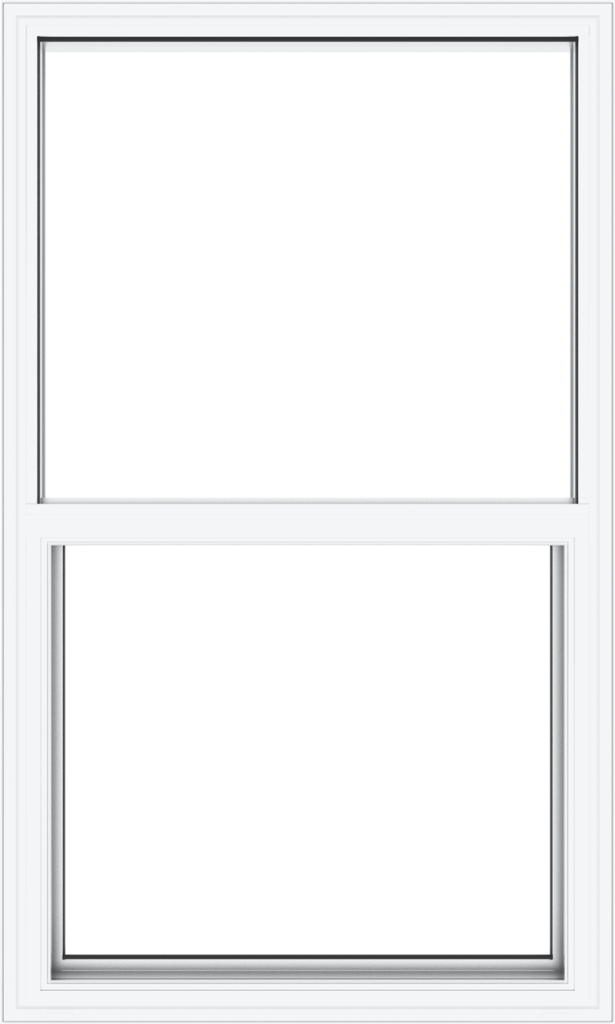

V300 Single Hung Window

Product Material

uPVC Vinyl

window type

Single Hung

Rating

CW-50

Structural
Overload (psf)

75

Condensation
Resistance (CR)

33-66

Air Infiltration
(cfm/ft2)

<0.30

Design Pressure
(psf)

50

Water Resistance
(psf)

Up to 7.52

STC

32-35

OITC

26-28

SHGC

0.10-0.60

U-Factor

0.20-0.46
Test Size (inches): 44 x 78
* = —
—

Product File Downloads

Projects that use
V300 Single Hung Window

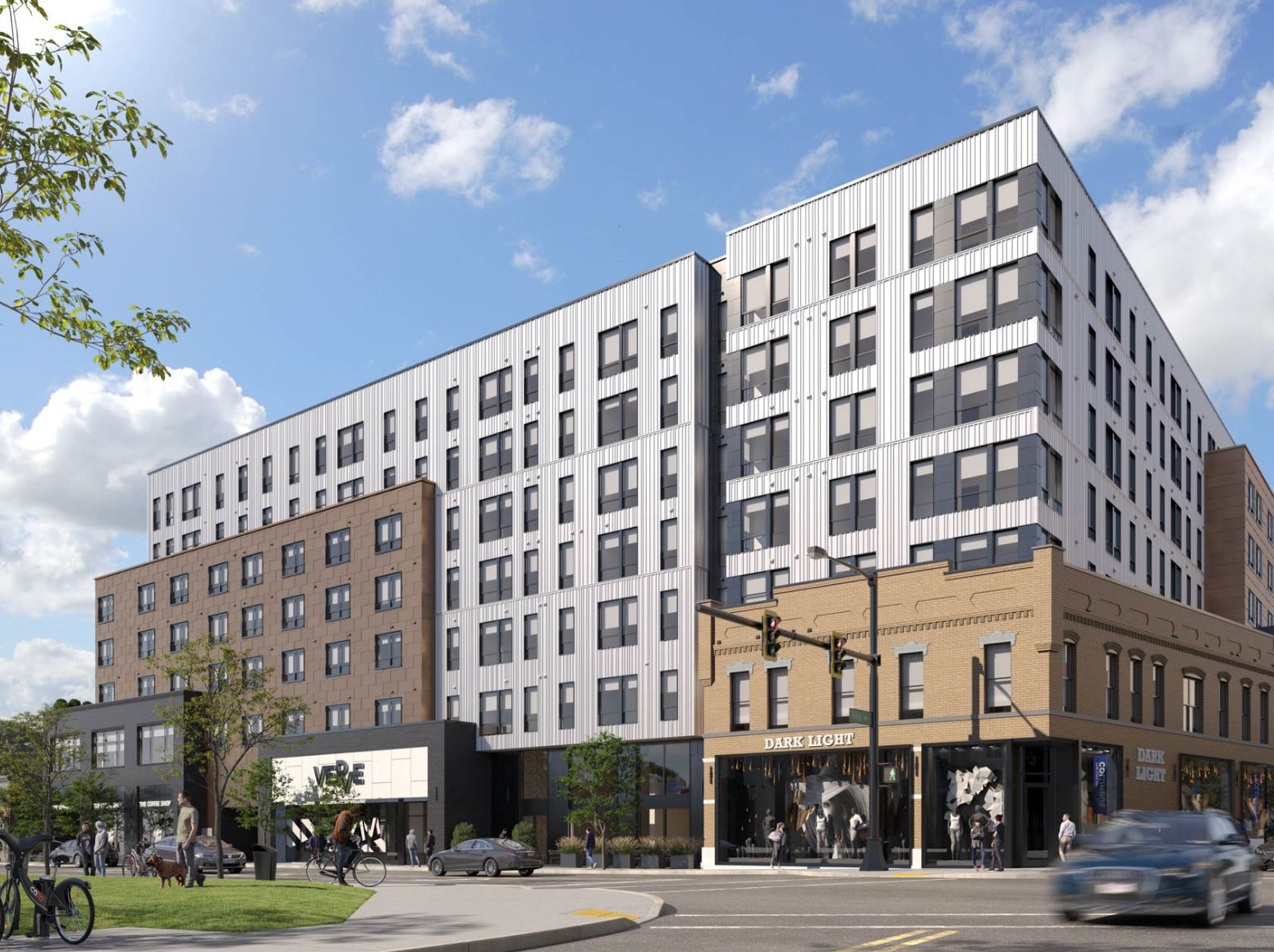

Upper Division Grad Housing
New West Englewood Homes

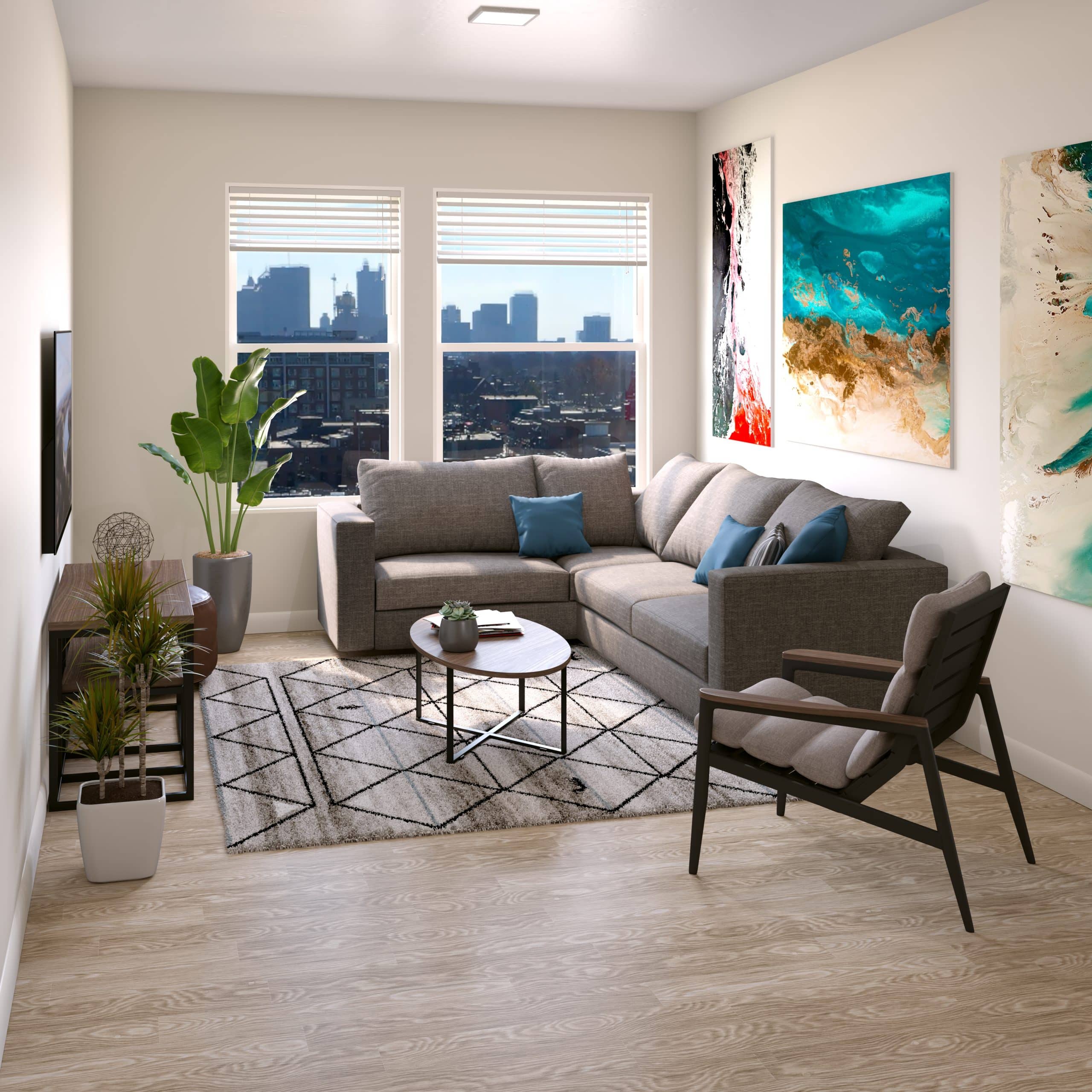

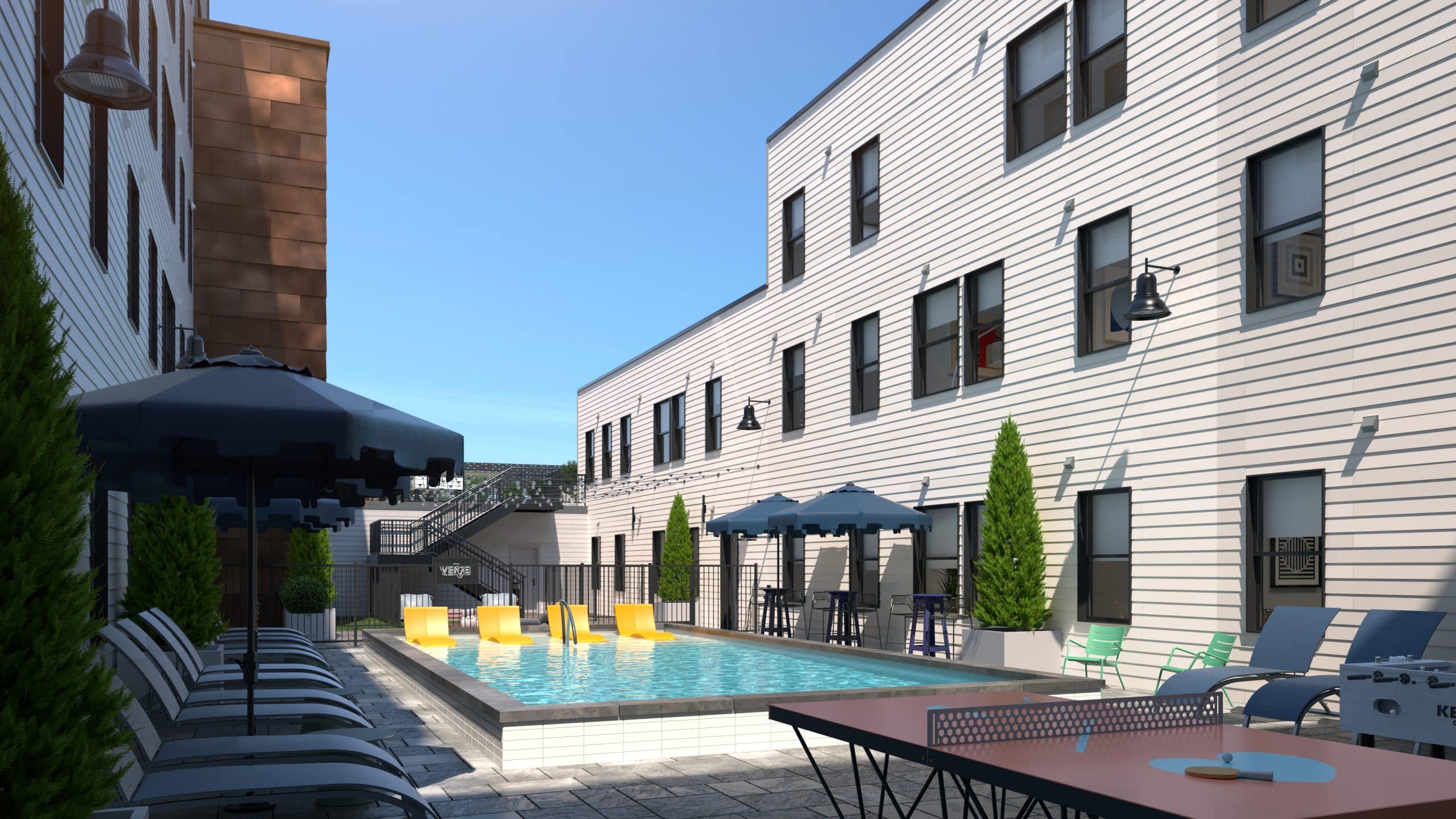

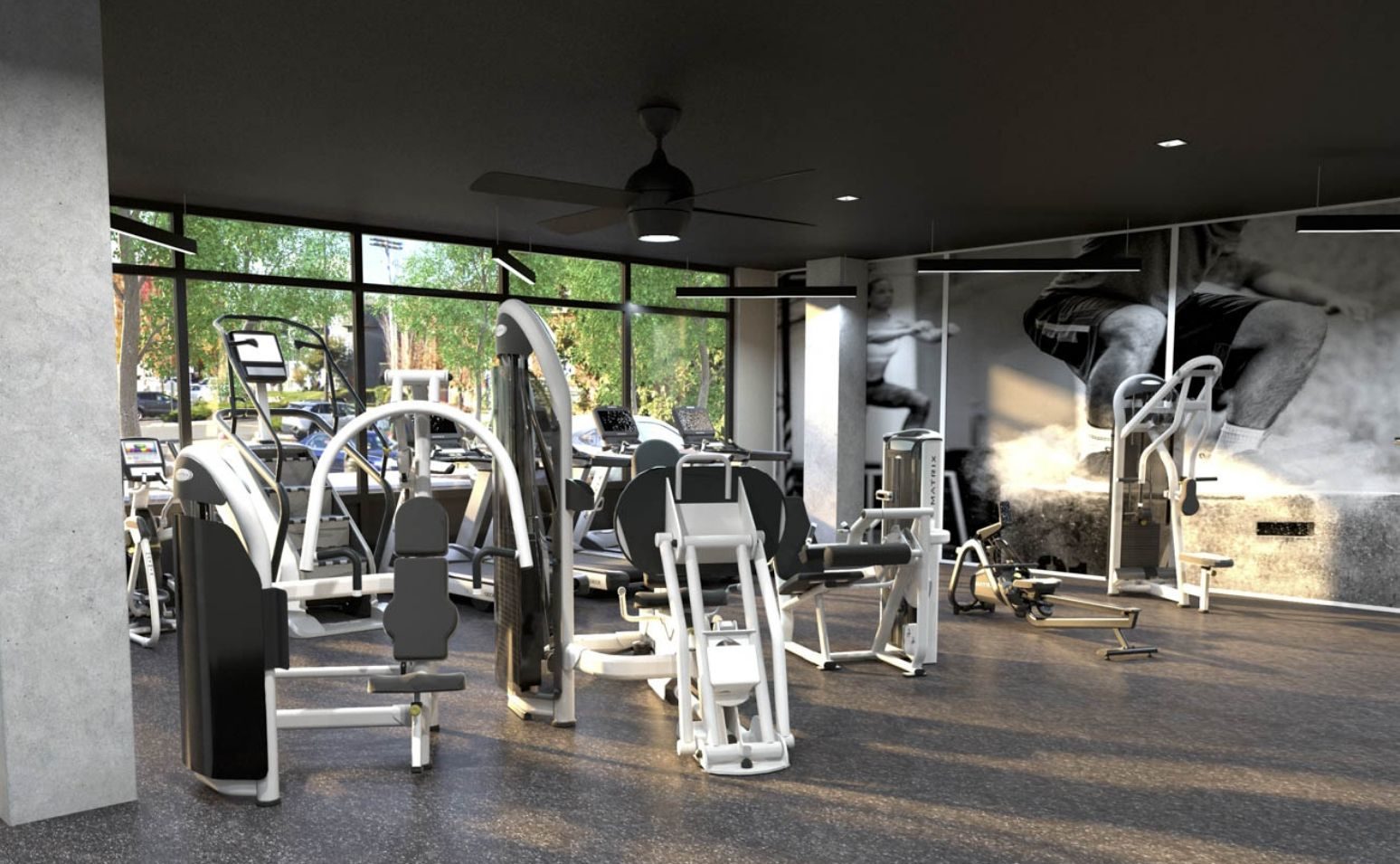

Gallery
