COMMERCIAL PRODUCT

E300 Fixed Window

Product Material

aluminum

window type

Fixed

Rating

AW-PG50 / CW-70

Structural
Overload (psf)

75.19

Condensation
Resistance (CR)

44 – 58

Air Infiltration
(cfm/ft2)

<0.10

Design Pressure
(psf)

50

Water Resistance
(psf)

10

STC

—

OITC

—

SHGC

0.16-0.57

U-Factor

0.25-0.32
Test Size (inches): 60 x 99

Product File Downloads

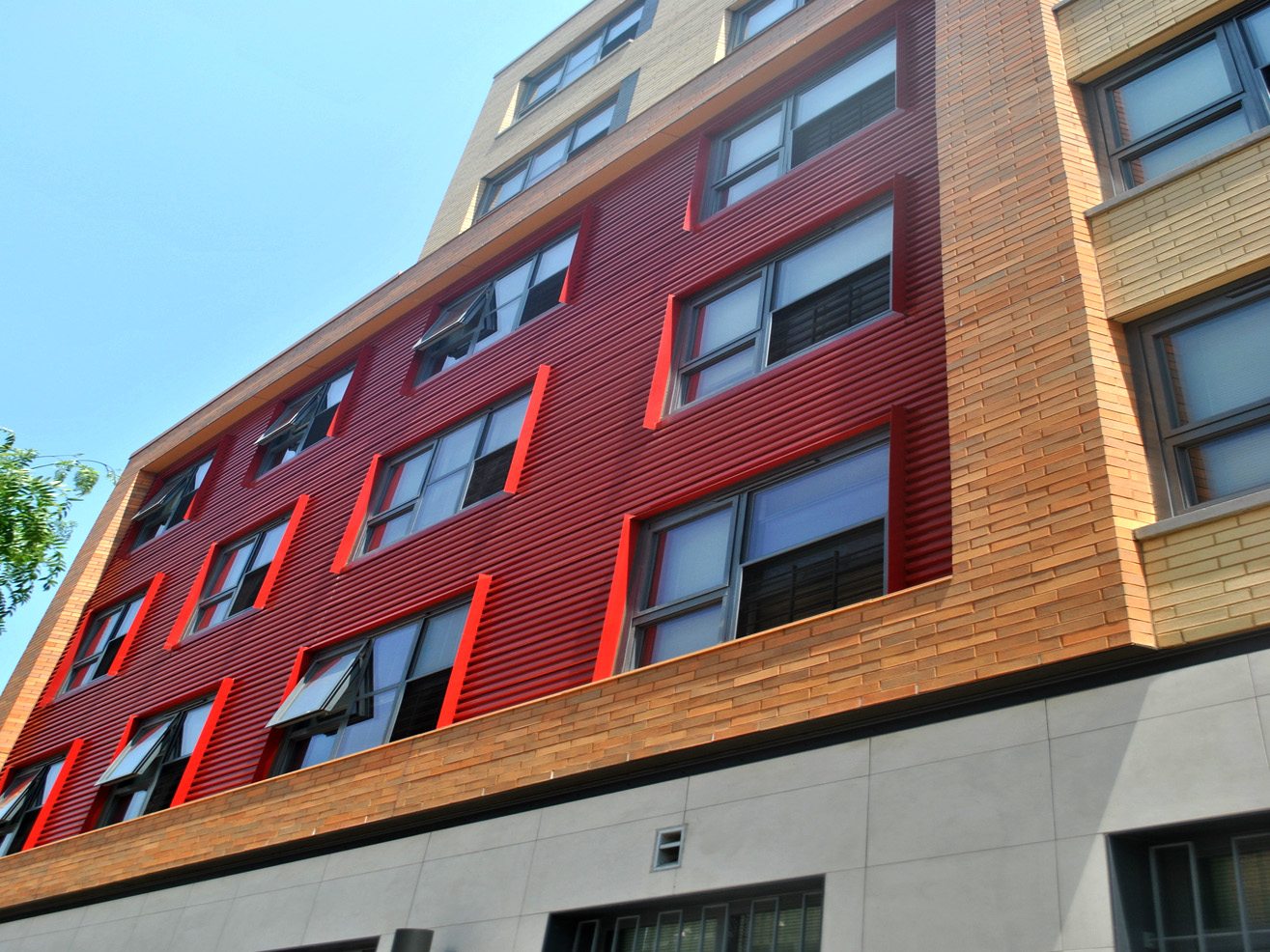

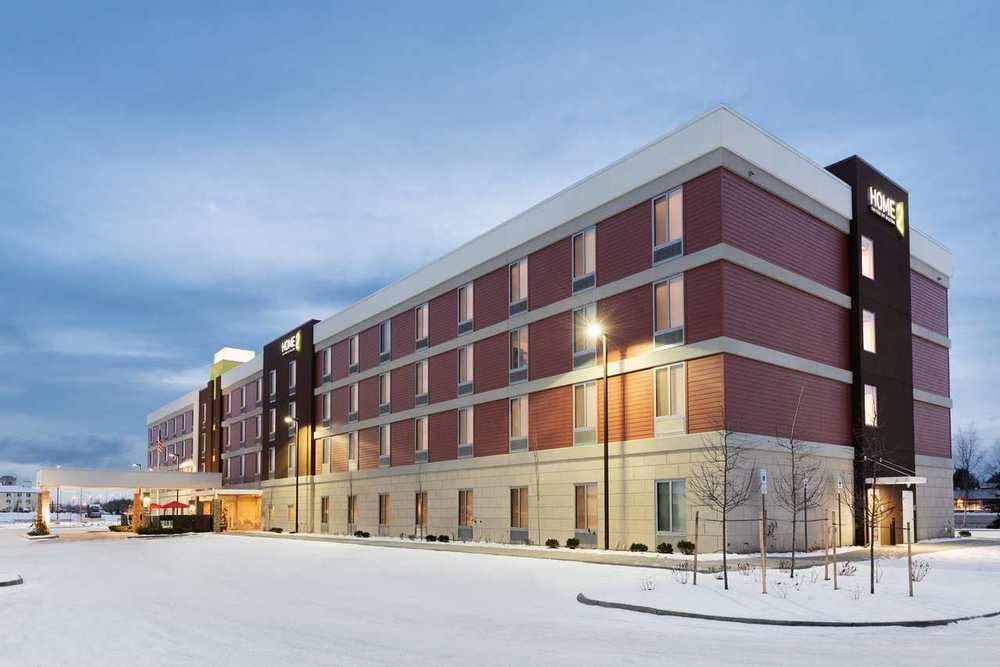

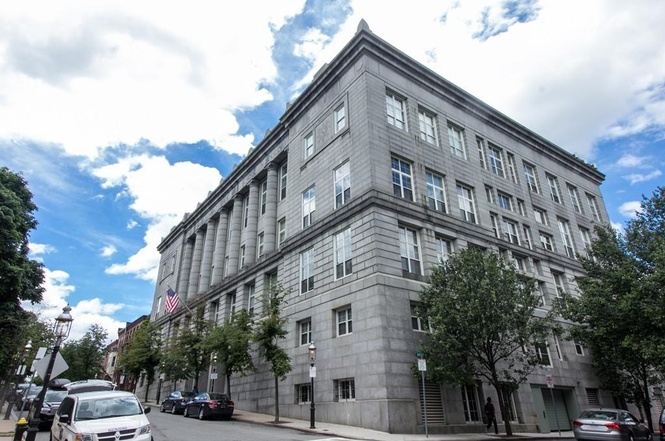

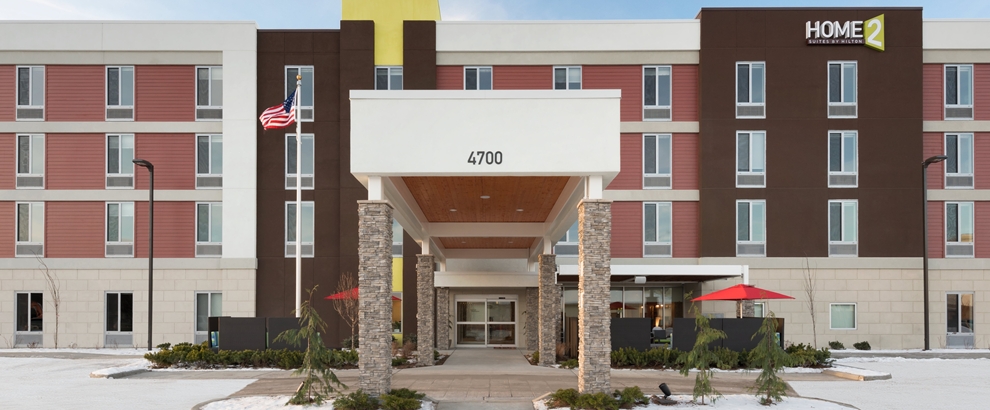

Projects that use
E300 Fixed Window

Gallery
